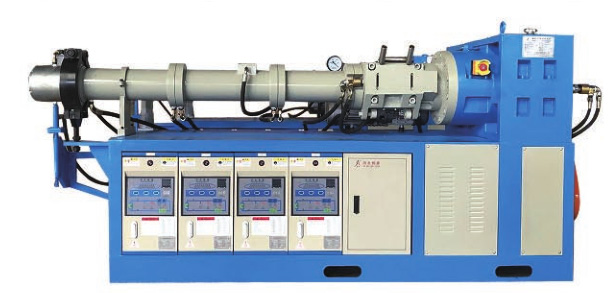

Type 90 rubber extruder
Product Attributes :
Features: the extruder has the following features: forced feeding, high eficiency, forced water cycle, even temperature control, long meteringseclion, stable extrusion line speed and fine texture. The extruder, coordinating with vacuum pump and pore-free workpiece, possessing thefunclion of no leakage glue, is stable and reliable with good quality and high yield and owns the features of shear, mixing, exhaust etc.
Product Description
| model | 60 | 75 | 90 | 120 |
| Specific diameter ratio | 20:1 | 20:1 | 20:1 | 20:1 |
| Screw diameter | 65mm | 75mm | 90mm | 120mm |
| rotational speed | 5-65r/min | 5-65r/min | 5-65r/min | 5-65r/min |
| Maximum extrusion capacity | 90KG | 200KG | 300KG | 420KG |
| vacuum pump | XD-20 | XD-30 | XD-40 | XD-40 |
| heat Power | 3KW*3 | 3KW*4 | 3KW*4 | 3KW*4 |
| Power | 18.5KW | 30KW | 55KW | 90KW |
| Speed regulation mode | Frequency Control | Frequency Control | Frequency Control | Frequency Control |
